Courses / Comprehensive design 2

Course data
Code: BMEEPIPT911, BMEEPIPM2KX
Course requirements: BMEEPxxT811, BMEEPEKA701, BMEEPEGA601, BMEEPIPM1KX
Final requirements: Project submission. Due to the current dean’s circular 1 personal consultation plus 1 online (single or team) consultation possibility is offered. The design diary must be continuously diarized about the design process. The course being based on consultation, continuous, real consultation is recommended throughout the semester!
Credits: 10
Time: 10 hours practice
Coursemaster: Bartók István DLA
Instructors: Bartók István DLA
Nagy Iván DLA
Szabó Dávid DLA
Szécsi Zoltán DLA
Vasáros Zsolt DLA
Árva József DLA
Description:
Information

for elaboration of the project


Character of the project

Comprehensive design is a two semester course. The task of the first semester – Comprehensive design I – is the elaboration of the projects program design, Comprehensive design II is for the detailed elaboration of the design.

During this one has to acquire the method to develop concept to technical solution. This phase of architectural design is a primary condition of feasibility of any building. A perfect concept can only become a successful work through the careful, technically correct, aesthetic forming and elaboration of the details. Forming details requires high degree of professional knowledge, advanced aesthetical sense, holistic creative skills and realistic economic approach. To acquire the methods of this complicated activity only on basic level intensive utilization of the study period is necessary. The project has to be improved on the base of critics on the Comprehensive design I of the departments. The projects can be improved in terms of architecture as well with the possible presenting of the original concept.

Work process

First the preliminary designs should be completed due to the given schedule (scale m=1:100, m=1:50) from every part of the design. The plans should be presented within the terms due to time schedule. This will be followed by the elaboration of details, finalization of constructions. The elaboration of the final project can be fulfilled using the details and the result of consultation with the associate departments. Certain to be solved tasks will be pointed out and evaluated by the consulting associate departments.

Evaluation

In the mark of the final project architecture counts 40%, whereas the associate departments 15-15% each. Any part of the project is fail, the mark of the whole project is fail too. The final mark is given from the final project and the results of the comprehensive tests – due to the faculty’s regulation.

Deadlines

The project submission is due to the faculty’s regulation and enclosed timetable. To the successful fulfilment the certain parts of the project must be handed in, or presented.

Content of the plans

The plans should be filled with a maximum of technical content based on the solution of the details. We mainly expect the elaboration of more complicated parts of the building, with the solution of development and building together of bearing structures, of façade details and situating constructions of building services determining the architectural look.



Parts of the project to submit



  1. Site plan m=1:500. New site plan is only necessary in case of bigger change, wrong or  imperfect plan.



  1. Plans of each different level m=1:50

with representation the close surroundings, the main and particular dimensions, grid, the measures of each room, doors with opening direction, windows with subdivisions, marking the functional necessary installation, the names, measures and finishes of the rooms. In case of a greater establishment - checked by the consultant - the elaboration of a certain part of the building is enough.



3.      Sections m=1:50

The number of sections to submit depends on the variety of constructions and the complexity of the building. The solutions of constructions of each main volume of the building should be shown. Also in case of a block-like building, or unified construction at least 2 sections perpendicular to each other are necessary, (without the repetitive constructions)

with representation the typical height measures and the plan measures of the axis, the level heights, the names of the structures and materials, the order of layers



4.      All elevations m=1:50

with representation of structures (different levels signed with short dashed lines), the typical height measures, materials, colours. In case of a greater establishment - checked by the consultant - the elaboration of a certain part of the building is enough.



5.      Interior plan m= 1:20, 1:10, 1:5

The solution of a characteristic, architecturally demanding room (eg. foyer), construction details

floor plan, cladding plan of the internal walls, built-in furniture, equipments, plan of suspended ceiling with light and ventilation elements

Perspective views of the interior.



6.      Architectural description, showing the context of architectural and construction solutions. It should contain data not seen on the plan, demanded explanations for construction, working principles of structures, motivation of material and structure choices.



7.      Parts of design and descriptions of structures, building constructions, building services, construction technology due to requirements of each associate department.



8.      Other parts of design. Beyond these parts of design consultants may ask for solution of special details – depending on the character of the task.



9.      The plans of Comprehensive design I are to submit in a separate folder.




Comprehensive test

For practice design skills and architectural, logical way of thinking there is one compulsory design test during the semester. As all necessary information will be given for completing the tests, so there is no need for previous preparation. The mark of the test influences the final mark of the course (mark of the final project/ mark of the test = 85%/15%).





Other regulations, obtaining the final mark and the signature:

A./        Formal requirements: All drawings can be traditional hand- or CAD drawings or any other optional official scaled printed technique. The clear and correct technical presentation detailed due to the scale is important. The mid-term and final plans the can be handed in at biggest 60x80 cm, or folded to that size, or can be accepted as a documentation folded on A4 size. The dimensions are bound for storing and exhibition reasons. Smaller size can be used as well, but the use of different size plans destroys the level of the documentation. A stable cover due to the plans dimensions with index is necessary. The elaboration of the plans should be discussed with the consultant.

B./        By the deadline due to the timetable the final project must be handed in – irrespectively of its readiness.

C./        One test with at least a pass mark. The test is obligatory.

D./        The project submission is due to the faculty’s regulation and enclosed timetable. In the mark of the final project architecture counts 40%, whereas the associate departments 15-15% each. Any part of the project is fail, the mark of the whole project is fail too. The final mark is given from the weighted average of the final project and the results of the mid-term presentations.



2nd September 2021.



Prof Vasáros zsolt DLA                                     Bartók István DLA

university professor                                           associate professor

head of department                                           head of course



Schedule:
1.6th September 2021, Monday 9:15-14:00 K 397 Representation of the semester’s working process
9th September 2021, Thursday 8:15-13:00 K 397 Elaboration of working drawings, consultation
2.13th September 2021, Monday 9:15-14:00 K 397 Elaboration of working drawings, consultation
16th September 2021, Thursday 8:15-13:00 K 397 Elaboration of working drawings, consultation
3.20th September 2021, Monday 9:15-14:00 K 397 Elaboration of working drawings, consultation
23rd September 2021, Thursday 8:15-13:00 K 397 Announcement of test, Elaboration of working drawings, consultation
4.27th September 2021, Monday 9:15-14:00 K 397 Submission and presentation of test
30th September 2021, Thursday 8:15-13:00 K 397 Elaboration of working drawings, consultation
5.4th October 2021, Monday 9:15-14:00 K 397 Presentation of working drawings, consultation
7th October 2021, Thursday 8:15-13:00 K 397 Presentation of working drawings, consultation
6.11th October 2021, Monday 9:15-14:00 K 397 Elaboration of detail plans, consultation
14th October 2021, Thursday 8:15-13:00 K 397 Elaboration of detail plans, consultation
7.18th October 2021, Monday  Preliminary studio week
21st October 2020, Thursday  Preliminary studio week
8.25th October 2021, Monday 9:15-14:00 K 397 Elaboration of detail plans, consultation
28th October 2021, Thursday 8:15-13:00 K 397 Elaboration of detail plans, consultation
9.1st November 2021, Monday  All saints
4th November 2021, Thursday 8:15-13:00 K 397 Elaboration of detail plans, consultation
10.8th November 2021, Monday 9:15-14:00 K 397 Elaboration of final design, consultation
11th November 2021, Thursday 8:15-13:00 K 397 Students' scientific conference
11.15th November 2021, Monday 9:15-14:00 K 397 Elaboration of final design, consultation
18th November 2021, Thursday 8:15-13:00 K 397 Elaboration of final design, consultation
12.22nd November 2021, Monday 9:15-14:00 K 397 Elaboration of final design, consultation
25th November 2021, Thursday 8:15-13:00 K 397 Announcement of additional test
13.29th November 2021, Monday 9:15-14:00 K 397 Submission/presentation of additional test
2nd December 2021, Thursday 8:15-13:00 K 397 Elaboration of final design
14.6th December 2021, Monday 8:15-14:00 K 397 Project finalization week
10th December 2021, Friday 23:59 K 397 Project submission 23:59 Friday 10th December 2021
15. K. 251
17th December 2021. Friday 23:59 K. 251 Delayed submission 23:59 Friday 17th December 2021 (with late fee!)
News
2023. 09. 18. 09:20
COMPREHENSIVE TEST UPDATE

Dear EXPLORATÍV_KOMPLEX Students, you can find the description and supplements of the test in the EXPLORATÍV KOMPLEX teams group 2023_2024_1_KOMPLEX_channel in a separate folder among the files. Personal presentation to be held (compulsory!) 21. 09. 2023 Thursday morning in the comprehensive classroom K 397!
2021. 09. 23. 12:47
Dear Comprehensive Students,

Please find the announcement of the comprehensive design test attached!
You can find a summary of questions-answers enclosed.

2021. 09. 22. 17:50
Dear EXPLORATÍV_KOMPLEX Students, due to the schedule we have the announcement of the comprehensive test tomorrow (Thursday) 8.15-9.00 am in room K 397. Personal presentation to be held (compulsory!) 27. 09. 2021 Monday between 8.15-13.00 in room K 251!
2019. 09. 27. 17:58
Dear Students,
find attached all materials of the COMPREHENSIVE TEST

Attachments:
comp_test_2019_0927_1001_eng_m.pdf (533 kB)
2019. 09. 23. 21:56
Dear Students of the Comprehensive Design 1 and 2 courses,

as you know the test of the Comprehensive Design courses is scheduled for 26th September.

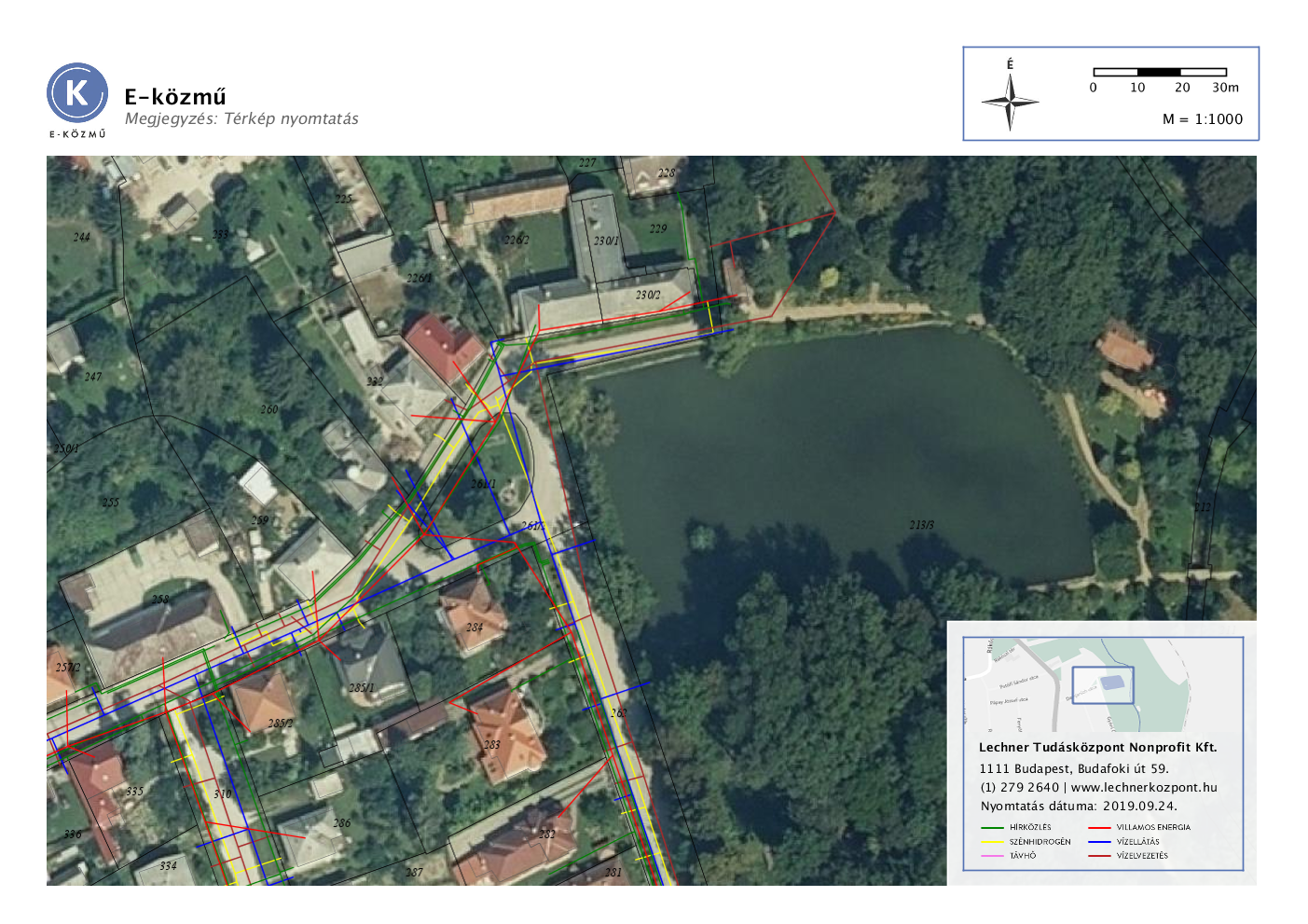

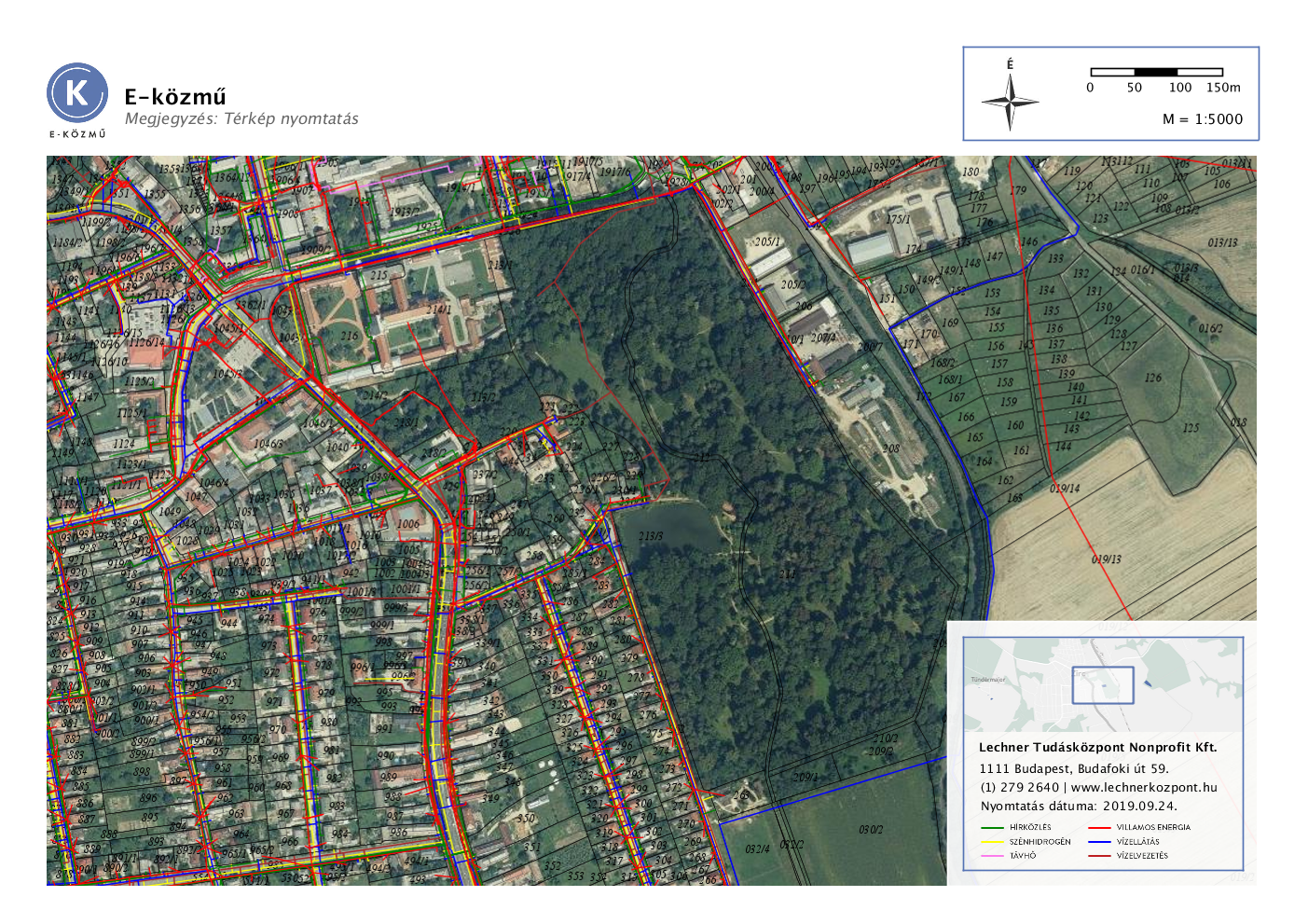

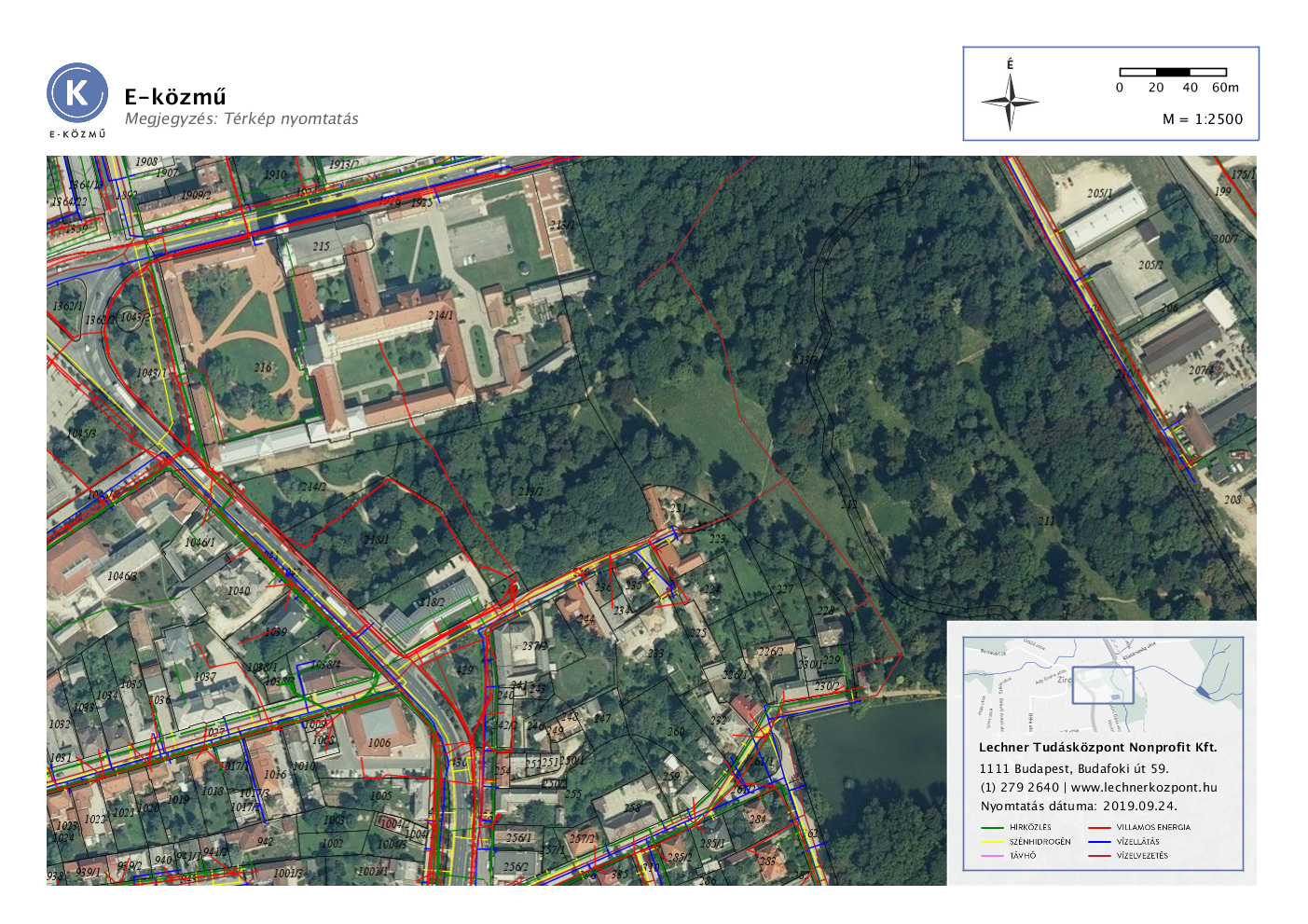

The design site for the test is in Zirc.
